CATWALKS AND TOWERS

Trust Chief Agri/Industrial for Catwalk & Tower Systems That Fit Your Grain Handling Needs!

As part of the Chief family of grain handling products, you can be assured your catwalk system offers easy assembly, and is engineered for safety and dependability. Here are a few of the reasons why Chief Catwalk and Tower Systems are right for your grain handling system:​

  • Chief Catwalk and Tower systems are OSHA compliant.
  • All components are hot-dip galvanized.
  • Fully bolted assembly requires minimal welding for easier installation.
  • Square tubing and angle-iron design assure optimal strength.
  • Easily accommodates man-lifts.
  • Can be customized to fit your grain handling system, regardless of manufacturer.

Catwalk System #2

  • Various Mounting Widths: 20", 30", 45" (50.8cm, 76.2cm, 114.3cm)
  • Catwalk Section Lengths: 3'-4", 6'-8", 10', 20' (1.01m, 2.03m, 3.04m, 6.09m)
  • OSHA Approved Walkway
  • Simple Bolt-Together Design

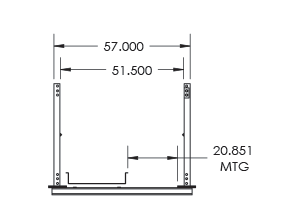

20" Mounting Area
30" Mounting Area
40" Mounting Area

Catwalk System #4

  • Various Mounting Widths: 30", 45", 60" (76.2cm, 114.3cm, 152.4cm)
  • Catwalk Section Lengths: 3'-4", 6'-8", 10', 20' (1.01m, 2.03m, 3.04m, 6.09m)
  • OSHA Approved Walkway
  • Center Walkway or Dual Walkway Available
  • Simple Bolt-Together Design

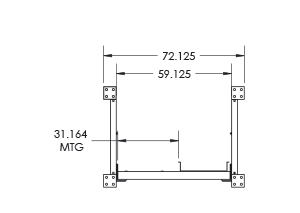

30" Mounting Area

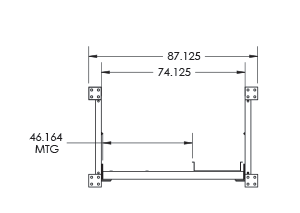

45" Mounting Area

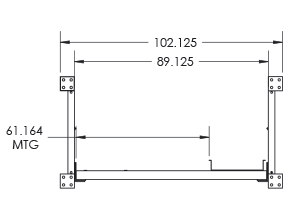

60" Mounting Area

Universal Walk Around Platform

  • Reduces Field Fabrication
  • Full Bolt-Together Installation
  • Multiple Location Options
  • Provides Personnel Access Around the Motor and Drive
  • Easily Modified for Discharge Opening
Walk Around.png

Towers

4 Column Support Tower

Available Widths and Lengths: 4', 6', 8', 10', 12', 14', 16' (1.22m, 1.83m, 2.44m, 3.05m, 3.65m, 4.26m, 4.87m)

Available Heights: 4', 5', 6', 7', 8', 9', 10', 20' (1.22m, 1.52m, 1.83m, 2.13m, 2.43m, 2.74m, 3.04m, 6.09m)
Strength Staged for Custom Loads

2 Column Support Tower

  • Available Heights from 60' (18.2m) to 120' (36.5m) in 5' (1.52m) increments
  • 25,000 lbs maximum support load
  • 30' maximum unbraced lengths

Tower Stairs

Internal Platform System

Internal Platform System for elevator access and maintenance. Can be configured to any size

​

Internal Platform Stage 0-3

  • 8' x 8' (2.43m x 2.43m)
  • 10' x 10' (3.04m x 3.04m)
  • 12' x 12' (3.65m x 3.65m)
  • 14' x 14' (4.26m x 4.26m)
  • 16' x 16' (4.87m x 4.87m)

Eave Tower Support

Support heights above bin eave of 10', 20', and 30' (3.04m, 6.09m, 9.14m)
